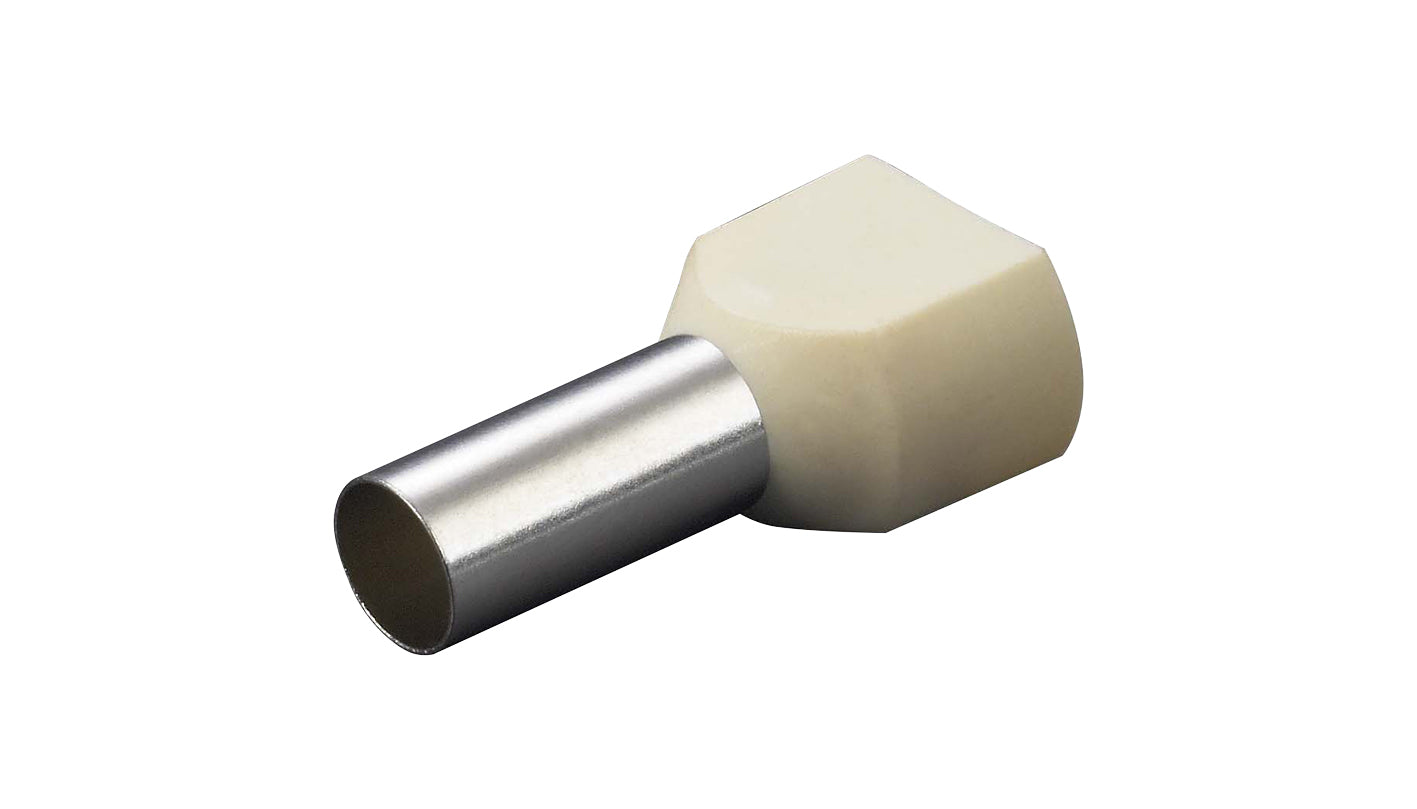

Twin cord end ferrules, also known as dual entry cord end terminals or bootlace ferrules, are designed to accommodate two cables terminating in the same sleeve. These ferrules provide a neat end termination for tri-rated cable and multi-stranded wires.
Key features of twin cord end ferrules include:
-
Material: Typically manufactured from tin-plated electrolytic copper.
-
Applications: Ideal for looping conductors and equipment with screw clamp terminals.
-

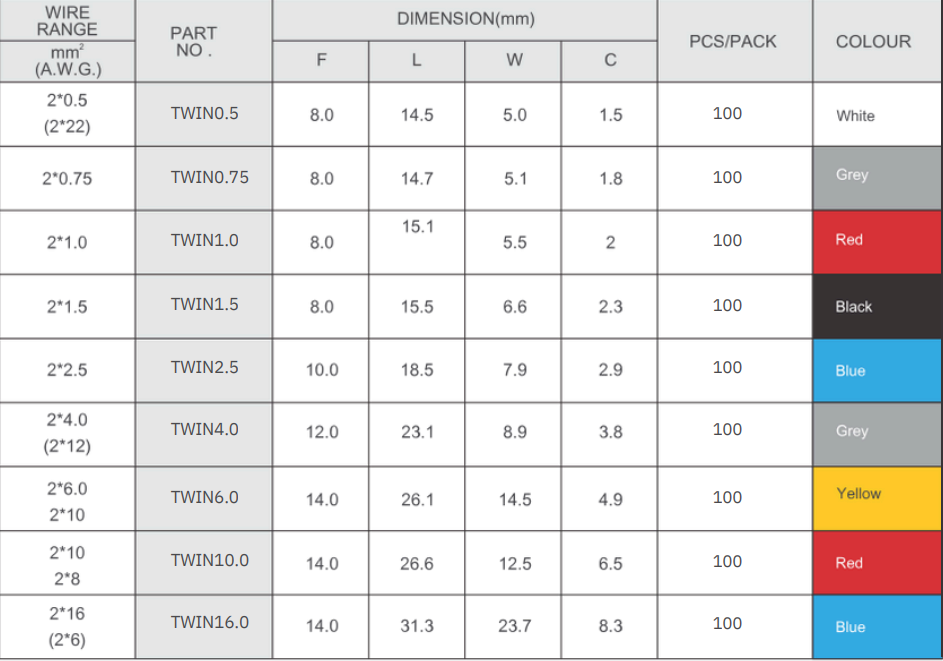

Size range: Available for cable sizes from 0.25mm² to 10mm².
-
Color coding: Often color-coded for easy identification.
-
Packaging: Usually sold in packs of 100.
Twin cord end ferrules are available in various configurations:
-
Standard and long barrel pin lengths.
-
Different color options based on cable size and coding system.
-
Varying pin lengths, such as 10mm long options.
Prices for these ferrules vary depending on size and quantity.
